1. M Mode
Press the MODE key to M Mode. In this mode, you can set TT560 On to your camera hot shoe or speedlite trigger hot shoe to trigger the flash unit. When shooting, adjust the flash power and press the camera shutter, the flash light will fla

sh under the camera synchronous signal. ?
2. S1 Mode
(1) Press the MODE key to S1 Mode. The Mode is applicable for slave flash in order to create many lighting effects. It is respectively applicable for manual flash environment. ?
(2) When the flash is S1 mode, it will fire synchronously when the master flash fires, comparable with the effect by the use of radio trigger. ?
3. S2 Mode
Press the MODE key to S2 Mode. The mode is applicable for slave flash in order to create many lighting effects. It is respectively applicable for TTL flash environment. The flash unit won’t flash synchronously with the first flash but the second flash from the master flash. ?
4. Power-saving Function
(1) To save battery power, the flash will enter stand-by state in about 30 minutes of idle use. Press any button to wake it up.
(2) In S1/S2 mode, the flash will enter stand-by state in about 60 minutes of idle use. Press any button to wake it up.(3) In Power-saving mode, the charging indicator flickers in every 3 seconds. Other Indicators are turned off.
5. Protection Function
(1) Protection in continuous flashes
(2) Systematic over-temperature protection
Specifications:
Guide Number:38 ( ISO 100 )
Flash Mode: M, S1, S2
Vertical Rotation Angle :0~90 degrees
Horizontal Rotation Angle: 0~270 degrees
Power: 4xAAsize batteries ( Alkaline or Ni-MH are usable )
Lighting Times: 100-1500 times ( AA alkaline batteries used )
Recycle Time :approx 0.5-5.5s ( AA alkaline batteries used )
Light Quantity Output Control :with 1/8 – stop increment
Color Temperature: 5600K
Flash Duration :1/800s~1/2000s
100% Brand New. 3 Months Warranty by Seller…. More >>

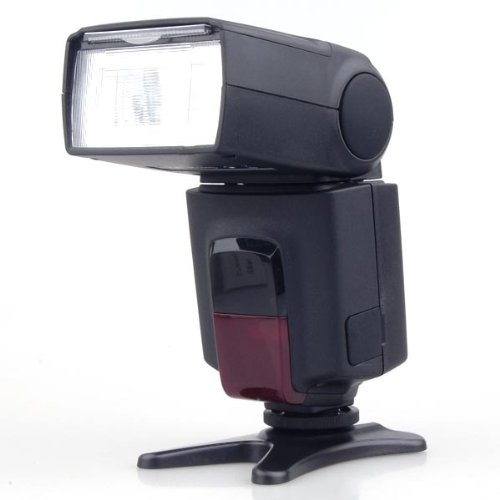

Specs and Features of TT560 Flash Speedlite for Canon 50D 40D 30D 20D Xti Xt

• TT560 Flash Speedlite for Canon Rebel T2i T1i XTi Xsi
• Power Management: Switch to the ON, the flash will start charging (the charging indicator is dim). After several seconds, the charging indicator turns red and TT560 is ready to shoot.
• For a test flash, press the test button. After use, press the ON/OFF to OFF to power off.
• If the red charging indicator lamp flickers in every 1s, it indicates low battery. In such case, the power will turn off automatically and you need to replace the batteries.
• 2. Power Control: The flash unit has 8 steps of power output control which indicated by 8 pieces of LED. Press “+” to make power higher and they are 1/128,1/64,1/32,1/16,1/8,1/4,1/2,1/1.
